Ø60x30 mm 5-Pin Female Cable Connector Electromagnet
With installments starting from $8.51!
| Stock | : | Sadece Teklif |
| Model | : | MGK-E-103 |
| Category | : | Yuvarlak Elektromıknatıslar |
| Quantity | Pack Price | Unit Price | |
|---|---|---|---|
Please contact us for larger quantities.
This rectangular neodymium magnet with dimensions of 60x20x10 mm is made of high-performanceN35 quality NdFeB (Neodymium, Iron, Boron) alloy. Despite its small size, this magnet offers high attraction power. Thanks to its nickel coating, it is corrosion resistant and provides long-lasting use.
Its block-shaped structure makes it easy to fit onto surfaces, making it ideal for both hobby projects and industrial applications.
Technical Specifications:
-
Dimensions: 60 mm x 20 mm x 10 mm
-
Magnet Quality: N35
-
Material: NdFeB – Neodymium Iron Boron
-
Coating: Nickel (Ni-Cu-Ni three floor)
-
Shape: Rectangle / Block
-
Shooting Power: High (may vary by application)
-
Operating Temperature: Maximum 80°C
Applications:
-
Electronic circuit and sensor applications
-
Hobby and DIY projects
-
Furniture and cabinet door fixing systems
-
Magnetic holders and mounting brackets
-
Educational materials and scientific studies

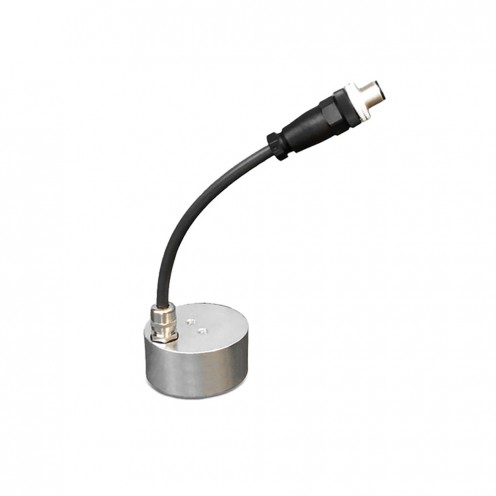

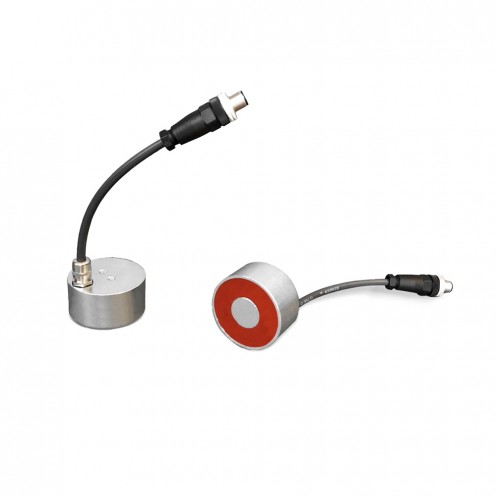

This 24V DC electromagnet with a diameter of Ø60 mm and a height of 30 mm is equipped with a M6x8 mm female connection on the rear and a top cable exit. Its compact size and strong holding performance make it an ideal solution for automation systems, electromechanical locks, conveyor lines, and mechanical fastening applications.
Technical Specifications:
-
Dimensions: Ø60 mm diameter x 30 mm height
-
Connection Type: M6x8 mm female (rear)
-
Cable Output: From the top
-
Operating Voltage: 24V DC
-
Material: Corrosion-resistant metal housing
-
Maximum Operating Temperature: 80°C
-
Mounting Type: Female rear connection
Applications:
-
Electromechanical locking systems
-
Automation and production lines
-
Magnetic adhesion in compact systems
-
Industrial machinery integrations
-
Robotic grasping and releasing systems
-
Working Principle of Electromagnets
| Topic | Description |
|---|---|
| Basic Principle | When a DC voltage (e.g. 12V or 24V) is applied, the current flowing through the coil creates a magnetic field around the core and attracts metal surfaces. |
| Main Components | Coil (winding), iron core, housing, connection cables, and where needed a resin coating (heat dissipation/insulation). |
| Strength of the Magnetic Field | Current (A), voltage (V), number of windings, core material, and the cleanliness/tolerance of the contact surface determine the holding force. |
| Duty Cycle | 50% duty: Operates for a set period and then rests (for heat management). 100% duty: Suitable for continuous operation; typically a heat-resistant/resin-coated design. |
| Polarity (Poles) | When the current direction changes, the N–S poles reverse. This is an advantage in direction-controlled applications. |
| Behavior on Power Loss | Standard electromagnet: Holding force is lost when power is cut. Permanent-magnet type: Holding continues when power is cut and releases when power is applied (fail-safe). |
| Heating and Cooling | Heating occurs due to coil resistance. The correct duty cycle, adequate cooling, and a suitable mounting surface are critical for lifespan/performance. |
| Applications | Industrial lifting/holding, automation and robotic grippers, door locks, brake/release mechanisms, CNC and assembly lines. |
| Advantages | Controllable magnetic force, fast response, remote actuation, depending on the application either fail-safe release or fail-safe hold. |
Round Electromagnets Catalog
|
MODEL (BYR5CK/ BUR5CK) |
Dimensions (mm) |
Power WATT |
Voltage VDC |
Duty Cycle % |
Connection POSITION |
Cable Gland PG7-9 |
Min. Plate Thick. (mm) |
Pull Force (N) |
||
|---|---|---|---|---|---|---|---|---|---|---|
| ØD | H | M | ||||||||
| Ø40x30 mm | 40 | 30 | M6 | 5.2 | 24 | 50 | TOP/SIDE | PG7 | 5 | 470 |
| Ø50x30 mm | 50 | 30 | M6 | 7 | 24 | 50 | TOP/SIDE | PG7 | 5 | 760 |
| Ø63x35 mm | 63 | 35 | M6 | 10 | 24 | 50 | TOP/SIDE | PG7 | 8 | 1000 |
| Ø80x40 mm | 80 | 40 | M8 | 15 | 24 | 50 | TOP/SIDE | PG7 | 10 | 2400 |
| Ø100x45 mm | 100 | 45 | M8 | 25 | 24 | 50 | TOP/SIDE | PG7 | 15 | 3400 |
| Ø150x55 mm | 150 | 55 | M16 | 37.2 | 48 | 50 | TOP/SIDE | PG7 | 25 | 9300 |
| Ø180x65 mm | 180 | 60 | M20 | 50 | 48 | 50 | TOP/SIDE | PG7 | 30 | 15000 |
| Ø200x60 mm | 200 | 60 | 3xM12 | 65 | 48 | 50 | TOP/SIDE | PG9 | 35 | 25000 |
| Ø250x80 mm | 250 | 80 | 3xM12 | 90 | 48 | 50 | TOP/SIDE | PG9 | 40 | 30000 |
| Ø280x110 mm | 280 | 110 | 3xM12 | 150 | 48 | 50 | TOP/SIDE | PG9 | 50 | 40000 |
| Ø300x130 mm | 300 | 130 | 3xM12 | 180 | 48 | 50 | TOP/SIDE | PG9 | 80 | 45000 |
