PML-300 Magnetic Hoist - Sheet Metal Carrier
8,758.80 TL

With installments starting from 608.25 TL!

Stock : In Stock
Model : MGK-PML-300
Category : Magnetic Lifters
Add to Cart
3 days in delivery!
Delivery by 28 June 2024 Friday at the latest.

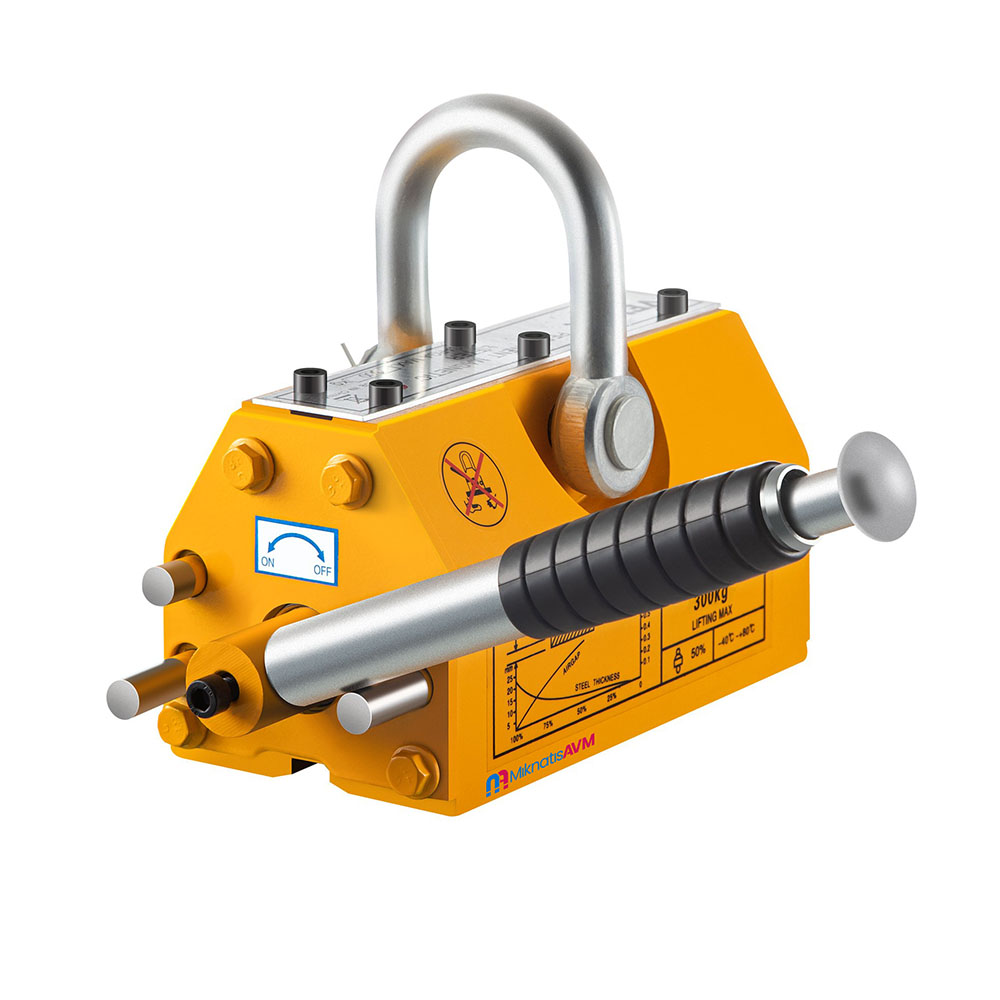

PML-300 Magnetic Sheet Metal Carrier Hoist 300 KG

The 300 kg capacity magnetic sheet carrier lever allows you to carry heavy metal materials by attaching to cranes or similar devices. Known as PML-300 or PML-3 in some sources, this magnetic lever is an effective solution in areas where manpower is not enough.

Features and Use

  • Carrying Capacity: 300 kg
  • Model: PML-300 / PML-3
  • Power Supply Lever system requiring no electricity
  • Areas of Use: Transportation of heavy metal materials

Instructions for Use

  • Surface Cleaning: Clean the surface of the metal part to be lifted.
  • Center of Gravity: Place the magnetic lever at the center of gravity of the part.
  • Activation: Lower the magnetic lever onto the metal part and activate the device by pulling the lever.
  • Lifting: When the magnetic force holds the metal part, lift and move it with a crane or similar device.
  • Deactivation: Move the lever to the off position when the part is in the desired position.

Power Efficiency and Material Thickness

Magnetic lever hoists provide power according to the thickness of the metal to be lifted. You can check how much power the PML model you will buy offers for which material thickness.

Note Pay attention to surface cleanliness before using the magnetic lever and make sure the device is positioned at the center of gravity.

Advantages

  • Powerful Magnetic Attraction: With 300 kg carrying capacity, it easily lifts heavy metal parts.
  • Lever System: Provides permanent power that does not require electricity.
  • Ease of Use: It can be easily activated and deactivated.

You can contact our company for detailed information about all kinds of magnetic system production and PML-300 magnetic lever.



Power efficiency of magnetic levers according to material quality?

Magnetic levers offer varying power ratings depending on the quality and type of metal to be drawn. Full efficiency is achieved when pulling low carbon steel, while offering the lowest pulling power in cast iron.


Material
Productivity
Low carbon steel
100%
Medium carbon steel
90%
High carbon steel
80%
High alloy steel
70%
Cast iron
50%


magnetic lever dimensions

Stock No              Power (Flat) Power (Oval)
Max.Güç W L H I °C
MGK-PML-100 100 50 350 62 92 67 126 <80
MGK-PML-300 300 150 1050 92 162 91 155 <80
MGK-PML-600 600 300 2100 122 232 117 196 <80
MGK-PML-1000 1000 500 3500 176 258 163 285 <80
MGK-PML-2000 2000 1000 7000 234 378 212 426 <80
MGK-PML-3000 3000 1500 10500 286 458 261 521 <80
MGK-PML-5000 5000 1800 18000 296 720 266 700 <80
