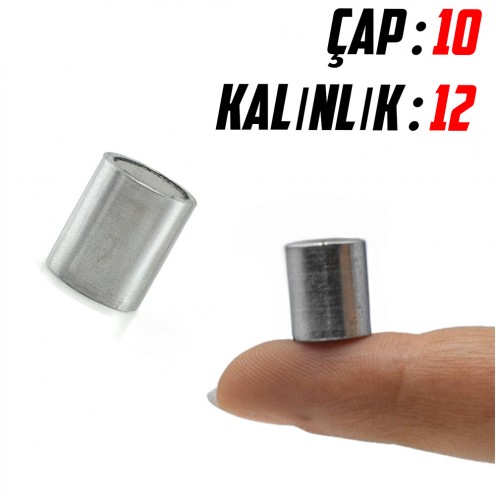

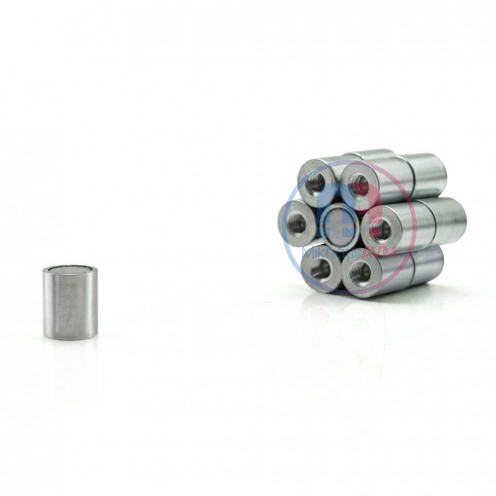

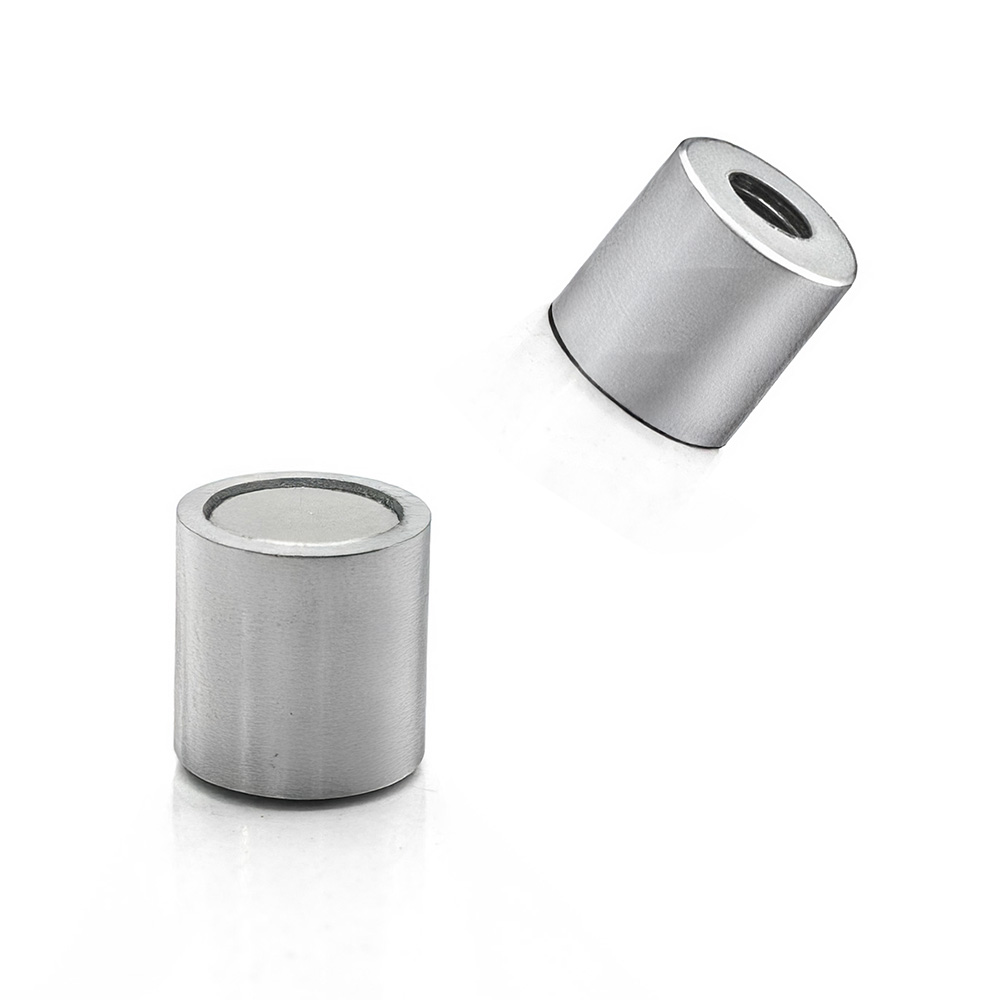

Ø10x12 mm Female Threaded Neodymium Pot Magnet – M5x5, N35 Grade High-Holding Cylindrical Magnet

The Ø10x12 mm M5x5 N35 female threaded pot magnet is a compact yet powerful magnetic solution, designed for screw-mounted applications that require strong holding force in limited space. With an M5 x 5 mm internal thread, it allows for secure and stable attachment using standard bolts or custom hardware.

Built with a N35 grade neodymium core housed in a steel pot, this magnet focuses its magnetic force on the contact surface, maximizing pull performance. Its nickel coating provides resistance to corrosion and surface wear, ensuring durability in industrial and mechanical environments.

Perfect for sensor mounting, equipment assembly, fixtures, and precision mechanical applications where a compact form factor and strong magnetic hold are essential.

Technical Specifications:

• Outer Diameter: Ø10 mm

• Height: 12 mm

• Thread Size: M5 x 5 mm (female)

• Material: Neodymium (NdFeB) + steel casing

• Grade: N35 – Strong magnetic performance

• Coating: Nickel – Corrosion-resistant finish

• Magnetization Direction: Axial (through thickness)

• Max Operating Temperature: 80°C

Application Areas:

• Threaded mechanical mounting systems

• Sensor and fixture assembly

• Industrial equipment and machine parts

• DIY and hobby projects

• Compact mounting in tight spaces
