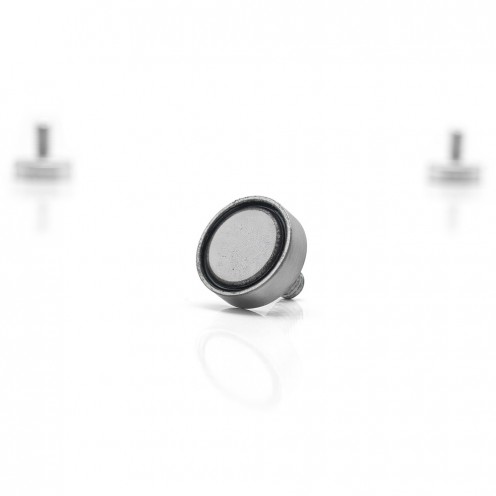

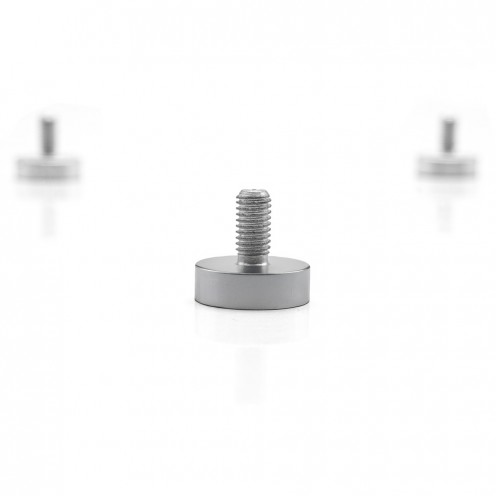

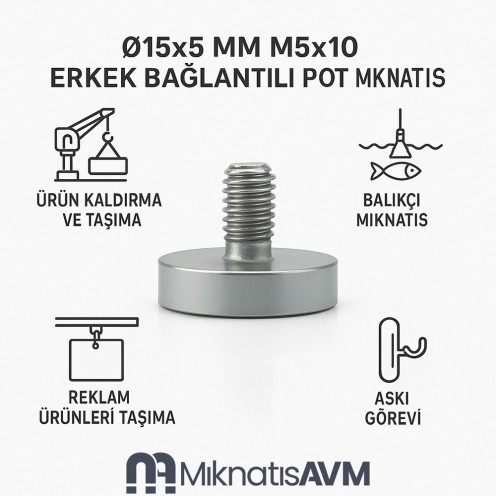

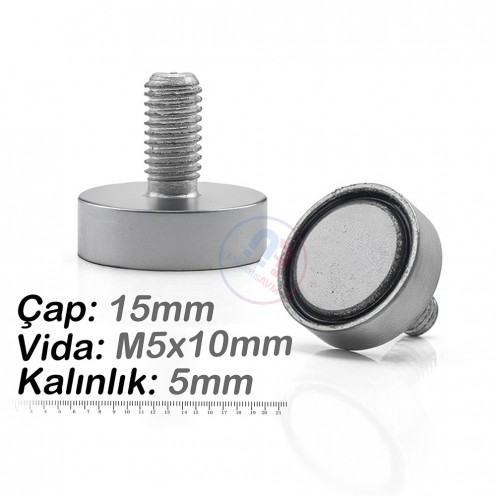

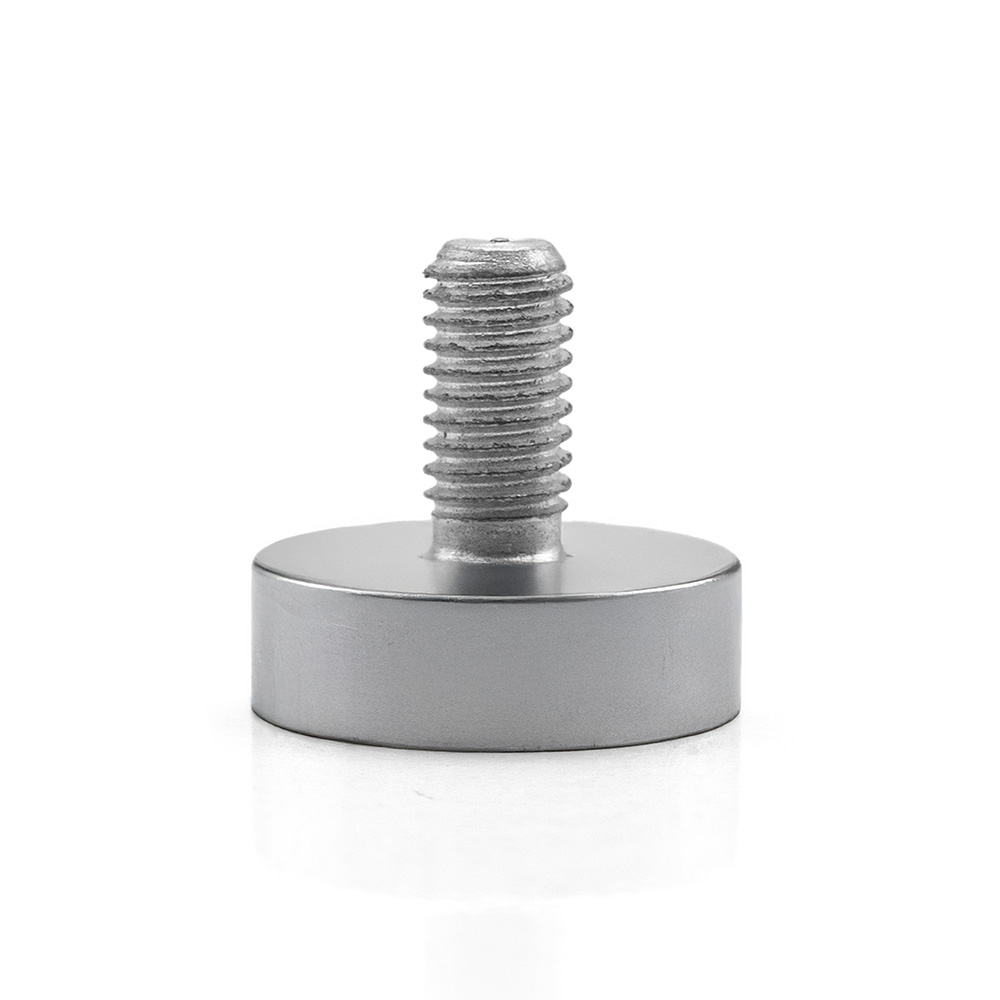

Ø15x5 mm M5x10 Male Threaded Neodymium Pot Magnet
With installments starting from $0.89!
| Stock | : | In Stock |
| Model | : | MGK-P-47 |
| Category | : | Neodyum Pot Mıknatıslar |
| Quantity | Pack Price | Unit Price | |
|---|---|---|---|
| 2 Quantity | $24.75 | $12.37 | |
| 5 Quantity | $59.12 | $11.82 | |
| 10 Quantity | $110.00 | $11.00 | |
Please contact us for larger quantities.
Ø15x5 MM M5x10 MALE CONNECTED NEODYMIUM POT MAGNET - MALE CONNECTED NEODYMIUM POT MAGNET -- COMPACT POWER, DURABLE PERFORMANCE
This custom-made neodymium pot magnet offers impressive holding power despite its compact size. Suitable for use in confined spaces with a diameter of Ø15 mm and a thickness of 5 mm. The M5x10 mm male connector can be easily mounted on various devices, apparatus, and surfaces.
Our product contains a high-performance N35 class Neodymium (NdFeB) magnet. Thanks to its strong suction power, it provides maximum efficiency in industrial applications. The coating does not tarnish and is resistant to external environmental effects.
Information: Our magnets have Gauss certification. Upon request, it can be sent to you certified for an additional fee. As Magneteksan company, we manufacture magnets and magnetic equipment specific to many sectors such as defense, automotive, public, food, recycling and mining.
Male Threaded Neodymium Pot Magnets (Type C)
| MODEL (EN8CCY) |
Dimensions (mm) | Metric (M) |
Force (KG) |
||
|---|---|---|---|---|---|
| ØD | h | H | |||
| Ø10x5 | 10 | 5 | 10 | M3 | 3 Kg |
| Ø16x5 | 16 | 5 | 10 | M4 | 5,5 Kg |
| Ø20x7 | 20 | 7 | 10 | M4 | 9 Kg |
| Ø25x8 | 25 | 8 | 13 | M5 | 22 Kg |
| Ø32x8 | 32 | 8 | 14 | M6 | 34 Kg |
| Ø36x8 | 36 | 8 | 14 | M6 | 41 Kg |
| Ø42x9 | 42 | 9 | 17 | M8 | 68 Kg |
| Ø48x10 | 48 | 10 | 18 | M8 | 81 Kg |
| Ø60x15 | 60 | 15 | 23 | M8 | 113 Kg |
| Ø75x20 | 75 | 20 | 30 | M10 | 164 Kg |
