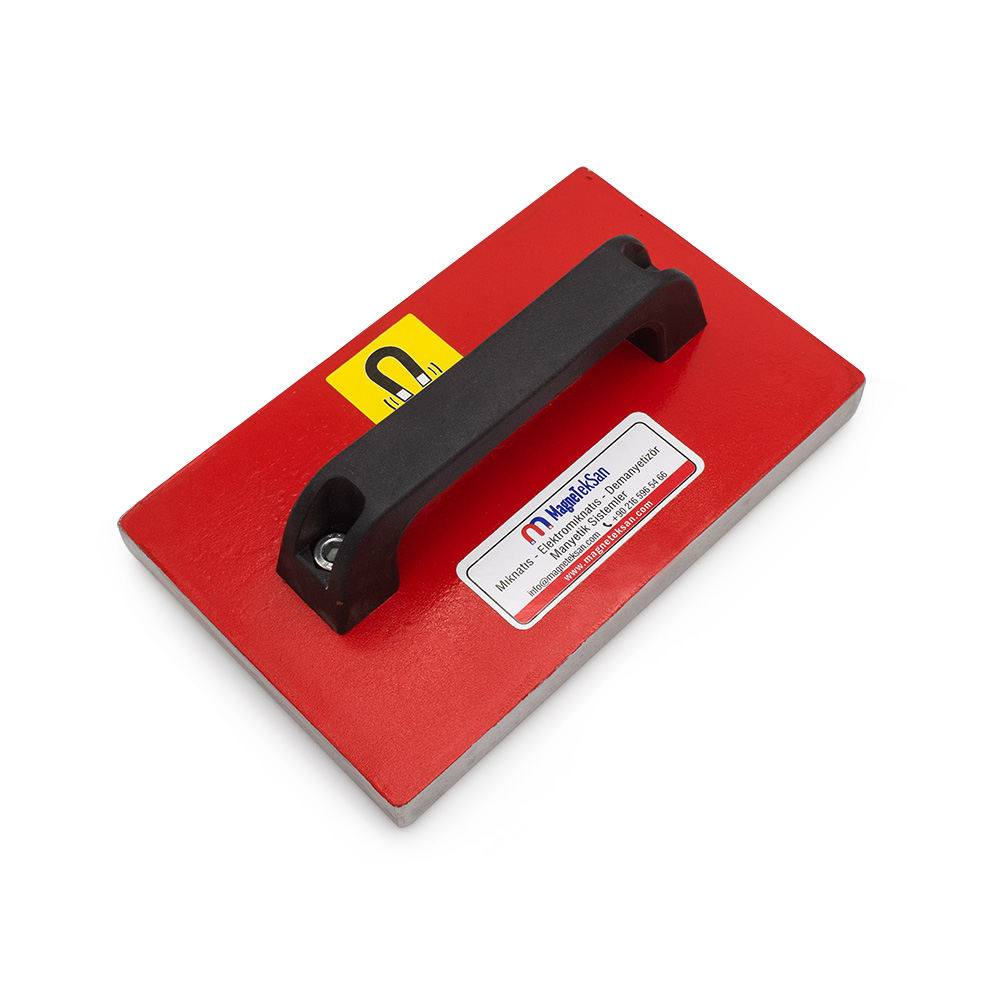

200x125x23 mm Plate Type Scrap Magnet

Plate Type Scrap Magnet Manufacturing

The neodymium magnet is manufactured at 20 cm length, providing both a wide attraction area and extra power. With N35 grade neodymium magnets, this plate magnet can carry loads up to 150 kg. This value applies when lifting flat and thick materials.

Our manufactured scrap carrying magnets are portable in structure. They collect small amounts of metals found on the ground in your work areas and industrial environments. Although typically used for small amounts of metals, stronger scrap magnets can be produced in larger sizes upon request.

Technical Specifications

• Magnetic Force: 150 kg lifting capacity
• Magnet Grade: N35 Neodymium
• Length: 20 cm
• Construction: Portable design
• Application: Industrial and workshop environments
• Customization: Magnetic force can be increased upon request

Additional Features

The magnetic force can be increased according to your requirements. Please contact us to discuss your specific needs and create customized solutions for your applications.

The mounting holes of plate magnets can be determined according to customer requirements and desired specifications. The minimum ferrous particle size that can be captured is 0.03 mm.

The surface plate of the magnet can be manufactured from AISI 304 stainless steel or AISI 316L stainless steel and features a sandblasted finish. The mounting surface is painted. Upon request, the product can also be manufactured entirely from stainless steel. Additionally, handles made of chrome or bakelite can be added. The manufacturing tolerance is ±3 mm.

Plate magnets manufactured by our company provide versatile solutions for different applications and process requirements. Our products are available as easy-clean plates, self-cleaning designs, permanent magnet plates, or electromagnetic plates.

Furthermore, we also manufacture overband electromagnetic separators (electromagnetic plate magnets for conveyors), suspension-type permanent overband magnets, housing-type magnetic plates, Z-type deflection plate magnets, handheld scrap magnets, and custom-designed plate magnets.

All products are optimized to deliver high performance and reliable magnetic separation.

For custom solutions tailored to your application, please feel free to contact our company.
