Ø20x25 mm M6 Male Threaded Neodymium Pot Magnet
With installments starting from $0.00!
| Stock | : | In Stock |
| Model | : | MGK-P-70 |
| Category | : | Neodyum Pot Mıknatıslar |
| Quantity | Pack Price | Unit Price | |
|---|---|---|---|
Please contact us for larger quantities.

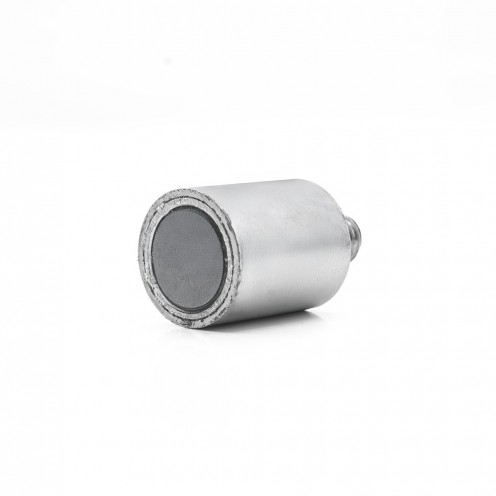

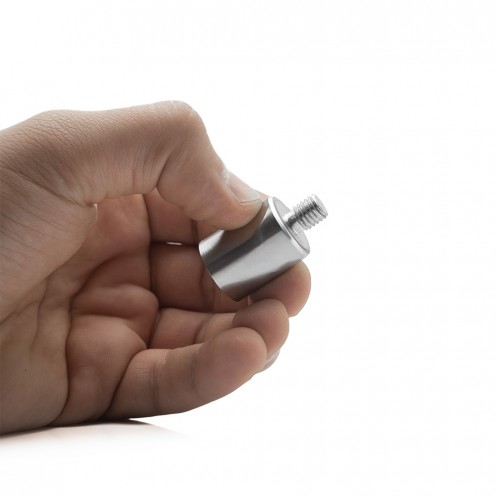

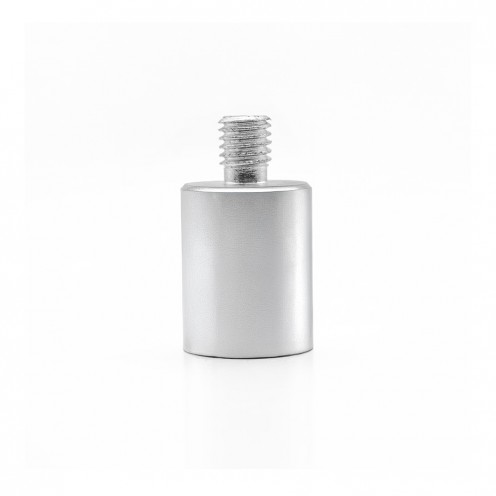

Ø20x25 mm Neodymium Pot Magnet with M6 Male Thread – High Pulling Force, Durable Structure
This custom-manufactured neodymium pot magnet offers strong magnetic holding even in compact spaces, thanks to its Ø20 mm diameter and 25 mm height. With its M6 male thread, it can be easily mounted onto fastening points on machines, assembly parts, or custom fixtures.
Inside is a high-performance N35 grade Neodymium (NdFeB) magnet. Thanks to its broad structure and high magnetic volume, it provides powerful and long-lasting solutions for industrial applications. The outer coating does not tarnish and is resistant to environmental conditions.
Technical Specifications:
-
Outer Diameter: Ø20 mm
-
Height: 25 mm
-
Connection: M6 male thread
-
Magnet Grade: N35
-
Application Areas: Industrial fastening, automotive, custom fixtures, machine parts
-
Coating: Surface resistant to rust and impact
Additional Information:
Our magnets are Gauss certified. Upon request, an official Gauss measurement report can be provided for an additional fee.
Magneteksan supplies magnetic systems and custom-made magnets for the defense, automotive, public sector, food, recycling, and mining industries.
Male Threaded Neodymium Pot Magnets (Type C)
| MODEL (EN8CCY) |
Dimensions (mm) | Metric (M) |
Force (KG) |
||
|---|---|---|---|---|---|
| ØD | h | H | |||
| Ø10x5 | 10 | 5 | 10 | M3 | 3 Kg |
| Ø16x5 | 16 | 5 | 10 | M4 | 5,5 Kg |
| Ø20x7 | 20 | 7 | 10 | M4 | 9 Kg |
| Ø25x8 | 25 | 8 | 13 | M5 | 22 Kg |
| Ø32x8 | 32 | 8 | 14 | M6 | 34 Kg |
| Ø36x8 | 36 | 8 | 14 | M6 | 41 Kg |
| Ø42x9 | 42 | 9 | 17 | M8 | 68 Kg |
| Ø48x10 | 48 | 10 | 18 | M8 | 81 Kg |
| Ø60x15 | 60 | 15 | 23 | M8 | 113 Kg |
| Ø75x20 | 75 | 20 | 30 | M10 | 164 Kg |
