Ø20x35 mm Male Threaded Pot Magnet
Ø20x35 mm Male Threaded Pot Magnet
0.00 TL
With installments starting from 0.00 TL!
| Stock | : | Sadece Teklif |
| Model | : | MGK-E2 |
| Category | : | Neodyum Pot Mıknatıslar |

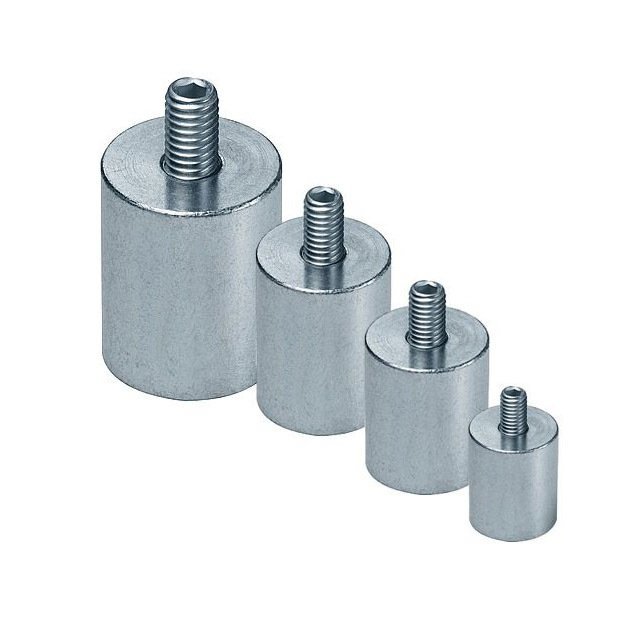

Neodymium Pot Magnet with Male Bolt Connection 20x35 mm - Cylindrical
This bolt-on product is produced in the following catalog dimensions. However, you can contact us for your special size requests. We meet all your wholesale magnet needs.
Neodymium magnets, unlike other magnets, have a very high attraction power and are therefore used by many companies. Pot magnet types can be coated with different materials depending on the area to be used, increasing their durability. On our site, you can find various types of neodymium magnets in cube, block, disk or cylindrical sizes. These different productions make the product suitable for the area where it will be used. Product coatings include:
- Copper
- Nickel
- Gold
- Zinc
- Tin
- Silver
Please contact us for the type suitable for your needs.
The coatings of the pot magnets we produce do not tarnish and can be used for a long time without throwing them away.
Male Connection Pot Magnet Types We Produce
The list below includes our catalog sizes. You can contact us for your magnet orders in different sizes. You can also benefit from discounts by ordering wholesale magnets.
| Stock No | D | H | h | M | Watt | Weight | ||
| mm | mm | mm | Kg | N | Lbs | g | ||
| MGK-E1 | 16 | 30 | 20 | M4 | 9 | 90 | 20 | 30 |
| MGK-E2 | 20 | 35 | 25 | M6 | 13 | 135 | 30 | 58 |
| MGK-E3 | 25 | 45 | 35 | M6 | 19 | 190 | 42 | 131 |
| MGK-E4 | 32 | 52 | 40 | M8 | 34 | 340 | 76 | 243 |
| MGK-E5 | 40 | 65 | 50 | M8 | 71 | 700 | 157 | 490 |
| MGK-E6 | 50 | 75 | 60 | M10 | 102 | 1000 | 225 | 915 |
| MGK-E7 | 63 | 85 | 65 | M12 | 173 | 1700 | 382 | 1579 |
Pot Magnets by Quality and Grades
Sintered NdFeB magnets are powerful permanent magnets made from an alloy of neodymium, iron and boron. NdFeB magnets are known as the strongest magnets available. However, they can oxidize quickly due to their low maximum temperature resistance. Therefore, you should carefully determine the temperature at which the magnet you are considering purchasing will be used and choose the magnet accordingly. The table below will help you in your selection of deep and long pot magnets.
In the table below, you can see the grades, qualities and maximum temperature resistances of the magnets. You can order N35, N42 and N52 pot magnet grades.
| Degree | Quality | Br (KG) Min-Max | HcB (KOe) | Hci (KOe) | Bhmax (MGOe) Min-Max | Tmax |
| N | N35 | 11.8-12.2 | ≥10.9 | ≥12.0 | 33-36 | 80C / 176F |
| N38 | 12.2-12.6 | ≥11.3 | ≥12.0 | 36-39 | 80C / 176F | |
| N40 | 12.6-12.9 | ≥11.4 | ≥12.0 | 38-41 | 80C / 176F | |
| N42 | 12.9-13.3 | ≥11.5 | ≥12.0 | 40-43 | 80C / 176F | |
| N45 | 13.3-13.7 | ≥11.0 | ≥12.0 | 43-46 | 80C / 176F | |
| N48 | 13.7-14.1 | ≥10.5 | ≥11.0 | 45-49 | 80C / 176F | |
| N50 | 14.0-14.5 | ≥10.5 | ≥11.0 | 47-51 | 80C / 176F | |
| N52 | 14.3-14.8 | ≥10.5 | ≥11.0 | 49-53 | 80C / 176F | |
| N55 | 14.7-15.1 | ≥10.5 | ≥11.0 | 53-56 | 80C / 176F | |
| M | 35M | 11.8-12.2 | ≥10.9 | ≥14.0 | 34-36 | 100C / 212F |
| 38M | 12.2-12.6 | ≥11.3 | ≥14.0 | 36-39 | 100C / 212F | |
| 40M | 12.6-12.9 | ≥11.6 | ≥14.0 | 38-41 | 100C / 212F | |
| 42M | 12.9-13.3 | ≥12.0 | ≥14.0 | 40-43 | 100C / 212F | |
| 45M | 13.3-13.7 | ≥12.5 | ≥14.0 | 43-46 | 100C / 212F | |
| 48M | 13.7-14.1 |
