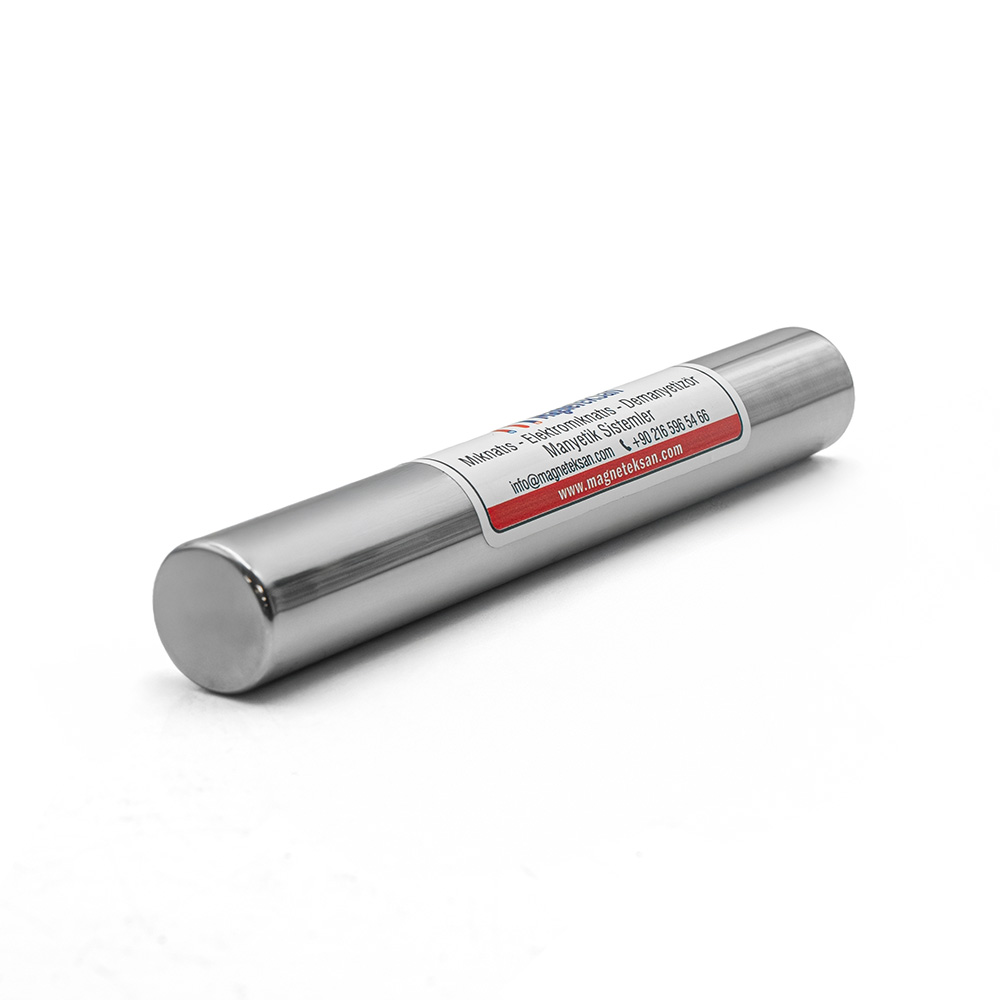

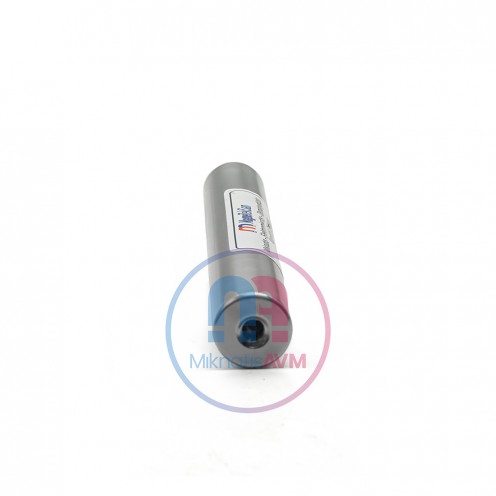

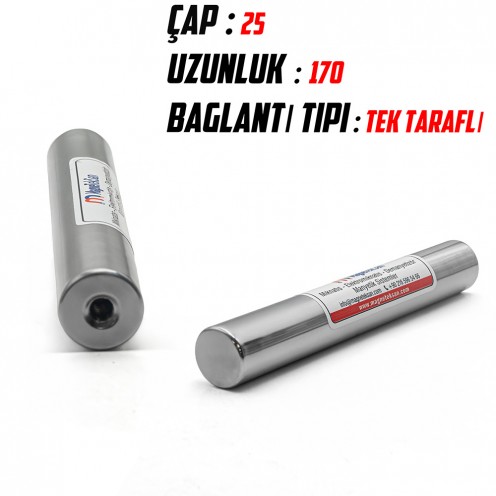

Ø25x170 mm Neodymium Magnetic Rod – TM8S811 Model, High Gauss Magnetic Separator for Industrial Use

The Ø25x170 mm TM8S811 neodymium magnetic rod is a high-performance magnetic separation element designed to capture ferrous particles in food, chemical, plastic, and ceramic processing lines. Compact and powerful, this magnetic rod delivers strong, uniform magnetic fields across its entire surface, ensuring maximum separation efficiency in limited installation spaces.

Constructed with a high-Gauss neodymium core (N35 or N42 grade) and encased in AISI 304 or AISI 316 stainless steel, it is suitable for both dry and liquid product lines and meets hygienic standards required in sensitive production environments.

The TM8S811 model is engineered for long-term stability and consistent magnetic performance in critical filtration processes.

Technical Specifications:

• Diameter: Ø25 mm

• Length: 170 mm

• Model Code: TM8S811

• Casing Material: AISI 304 / AISI 316 stainless steel

• Magnet Grade: Neodymium (NdFeB) – N35 or N42

• Magnetization Pattern: Multi-pole, evenly distributed around the rod

• Application Medium: Compatible with dry or liquid product flows

• Max Operating Temperature: 80°C

Application Areas:

• Food production lines (e.g., flour, sugar, spices)

• Plastic powder and granule processing

• Chemical mixing and production systems

• Ceramic and pigment manufacturing

• Liquid product filtration and dosing lines
