Ø40x50 mm Very Strong Pot Magnet - 40 kg Pulling Power
Ø40x50 mm Very Strong Pot Magnet - 40 kg Pulling Power
0.00 TL
With installments starting from 0.00 TL!
| Stock | : | Sadece Teklif |
| Model | : | MGK-DS9 |
| Category | : | Neodyum Pot Mıknatıslar |

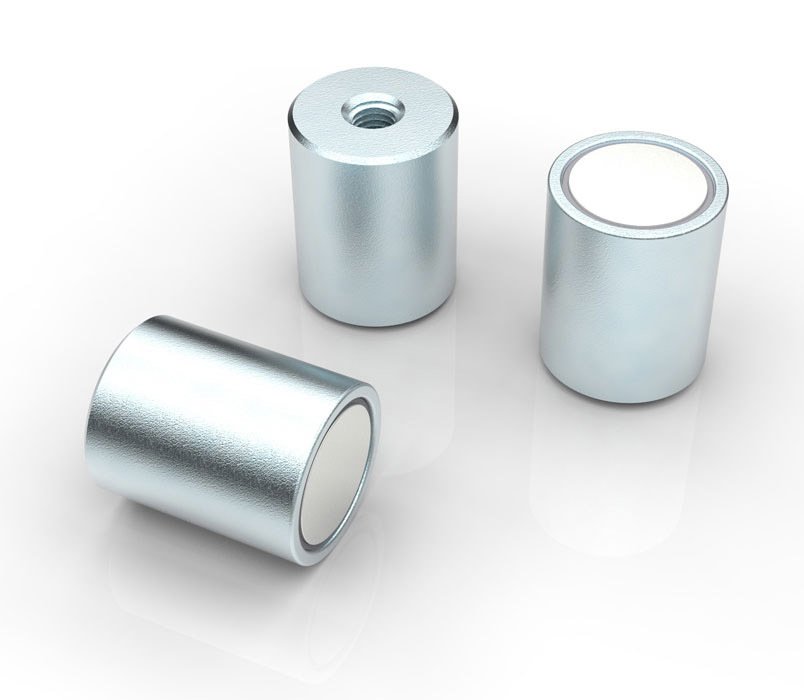

NEODYUM Ø40x50 mm Perforated Cylindrical Pot Magnet - 40 kg Attractive Force
This strong pot magnet product with bolt connection hole is produced in the following catalog sizes. However, you can contact us for your special size requests. We meet all your wholesale magnet needs.
Neodymium strong pot magnet models have a very high attraction power unlike other magnets and are therefore preferred by many companies. Pot magnet types are made more durable by coating with different materials depending on the area to be used. On our site, you can find various types of neodymium magnets in cube, block, disk or cylindrical sizes. These different productions make the product suitable for the area where it will be used. Product coatings include:
- Copper
- Nickel
- Gold
- Zinc
- Tin
- Silver
Please contact us for the type suitable for your needs.
The coatings of the pot magnets we produce do not tarnish and can be used for a long time without throwing them away.
Types of Strong Pot Magnets with Neodymium Female Connection We Produce
The list below shows our catalog sizes. Please contact us for your magnet orders in different sizes. You can also benefit from discounts by ordering wholesale magnets.
| Stock No | D | H | MXL | Watt | Weight | ||
| mm | mm | mm | Kg | N | Lbs | g | |
| MGK-DS1 | 6 | 20 | M3x5 | 0.6 | 6 | 1.3 | 4 |
| MGK-DS2 | 8 | 20 | M3x5 | 1.2 | 12 | 2.6 | 7.5 |
| MGK-DS3 | 10 | 20 | M4x7 | 2.4 | 24 | 5.3 | 11 |
| MGK-DS4 | 13 | 20 | M4x7 | 6 | 60 | 13 | 20 |
| MGK-DS5 | 16 | 20 | M4x7 | 9 | 90 | 20 | 30 |
| MGK-DS6 | 20 | 25 | M6x9 | 13 | 135 | 30 | 58 |
| MGK-DS7 | 25 | 35 | M6x9 | 19 | 190 | 42 | 131 |
| MGK-DS8 | 32 | 40 | M8x12 | 25 | 340 | 76 | 243 |
| MGK-DS9 | 40 | 50 | M8x12 | 40 | 700 | 157 | 480 |
| MGK-DS10 | 48 | 60 | M10x12 | 60 | 1000 | 225 | 900 |
| MGK-DS11 | 60 | 65 | M12x14 | 100 | 1700 | 382 | 1560 |
Pot Magnets by Quality and Grades
Sintered NdFeB magnets are powerful permanent magnets made from an alloy of neodymium, iron and boron. NdFeB magnets are known as the strongest magnets available. However, they have a low maximum temperature resistance. This causes neodymium pot magnets to oxidize quickly. For this reason, you should accurately determine the temperature at which the magnet you are considering purchasing will be used and choose the magnet accordingly. The table below will help you in your selection of deep and long pot magnets.
In the table below, you can see the grades, qualities and maximum temperature resistances of the magnets. N35, N42 and N52 pot magnet grades are available to order.
| Degree | Quality | Br (KG) Min-Max | HcB (KOe) | Hci (KOe) | Bhmax (MGOe) Min-Max | Tmax |
| N | N35 | 11.8-12.2 | ≥10.9 | ≥12.0 | 33-36 | 80C / 176F |
| N38 | 12.2-12.6 | ≥11.3 | ≥12.0 | 36-39 | 80C / 176F | |
| N40 | 12.6-12.9 | ≥11.4 | ≥12.0 | 38-41 | 80C / 176F | |
| N42 | 12.9-13.3 | ≥11.5 | ≥12.0 | 40-43 | 80C / 176F | |
| N45 | 13.3-13.7 | ≥11.0 | ≥12.0 | 43-46 | 80C / 176F | |
| N48 | 13.7-14.1 | ≥10.5 | ≥11.0 | 45-49 | 80C / 176F | |
| N50 | 14.0-14.5 | ≥10.5 | ≥11.0 | 47-51 | 80C / 176F | |
| N52 | 14.3-14.8 | ≥10.5 | ≥11.0 | 49-53 | 80C / 176F | |
| N55 | 14.7-15.1 | ≥10.5 | ≥11.0 | 53-56 | 80C / 176F | |
| M | 35M | 11.8-12.2 | ≥10.9 | ≥14.0 | 34-36 | 100C / 212F |
| 38M | 12.2-12.6 | ≥11.3 | ≥14.0 | 36-39 |
