Ø50x10 mm M8 Dişi Bağlantılı Ferrit Pot Mıknatıs

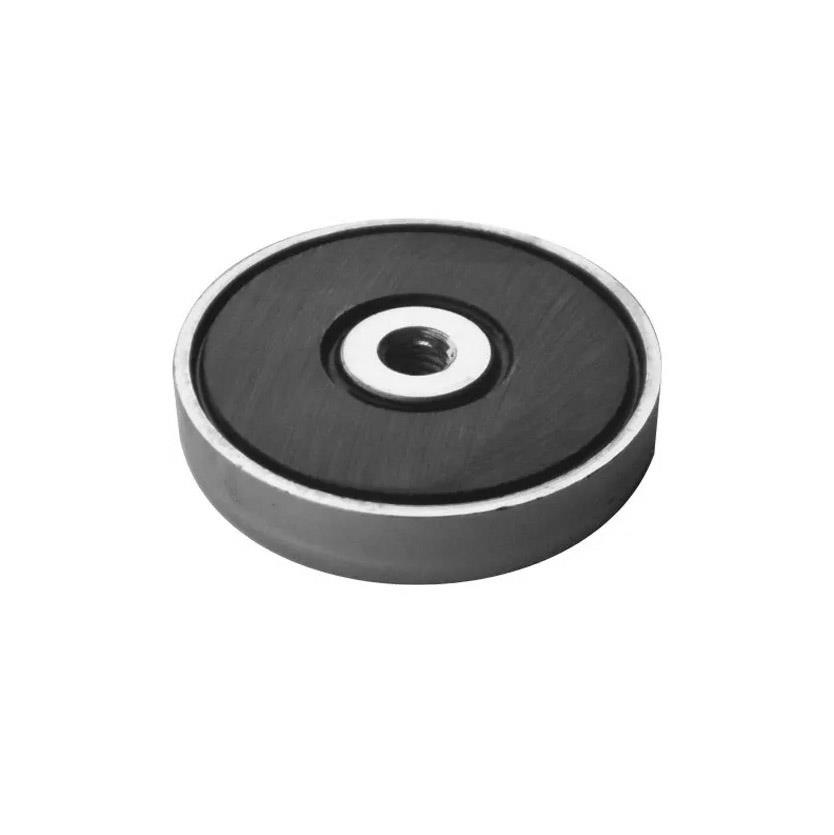

50x10 mm M8 Ferrite Pot Magnet with Female Hole

50 mm outer diameter, 8 mm inner diameter and 10 mm thickness ferrite pot magnet with female bolt connection can be produced in the sizes you want. Please contact us for different sizes. We have wholesale magnet sales and our own production.

Specifications:

Stainless: Ferrite magnets do not rust in any environment and are suitable for use in fresh or salt water.

Material: It consists of iron oxide, barium or strontium compounds and is produced by high ceramic processing technology.

Shapes: Cylinders, squares, rectangles, rings and special shapes.

Temperature Resistance: Standard maximum temperature resistance is 220°C.

Coating: The coating does not tarnish and does not throw off.

Pot Magnet Manufacturing with Female - Male Connection:

Our company manufactures pot magnets and offers solutions suitable for neodymium, ferrite and all connection types.

Male connection

Female connection

Imbus connected

Countersunk hole

With internal threaded stud

Y35 Quality Ferrite Pot Magnet:

• Diameter: 50 mm
• Thickness 10 mm
• Inner Diameter: 8 mm
• Tolerance: ± 0.1 mm
• Power: 0-2 kg
• Plating Nickel
• Magnet Type: Ferrite
• Operating Temp: Max. 220°C
• Quality: Y35
