Ø50x75 mm Super Strong Istanbul Pot Magnet
Ø50x75 mm Super Strong Istanbul Pot Magnet
$0.00
With installments starting from $0.00!
| Stock | : | Sadece Teklif |
| Model | : | MGK-E6 |
| Category | : | Neodyum Pot Mıknatıslar |
| Quantity | Pack Price | Unit Price | |
|---|---|---|---|
Please contact us for larger quantities.
Cylindrical Super Strong Neodymium Pot Magnet - Istanbul -50x75 mm
Please contact us for the type suitable for your needs.
The coatings of the pot magnets we produce do not tarnish and can be used for a long time without throwing them away.
Male Connection Pot Magnet Types We Produce
This bolt-on product is produced in the following catalog dimensions. However, you can contact us for your special size requests. We meet all your wholesale magnet needs.
Neodymium magnets have a very high attraction power unlike other magnets and are therefore used by many companies. Pot magnet types are made more durable by coating with different materials depending on the area to be used. On our site, you can find various types of neodymium magnets in cube, block, disk or cylindrical sizes. These different productions make the product suitable for the area where it will be used. Product coatings include:
- Copper
- Nickel
- Gold
- Zinc
- Tin
- Silver
The list below shows our catalog sizes. Please contact us for your magnet orders in different sizes. You can also benefit from discounts by ordering wholesale magnets.

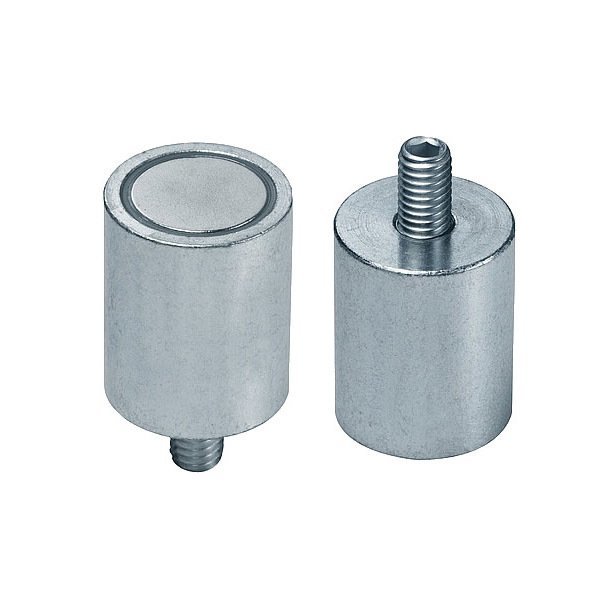

Male Threaded Neodymium Pot Magnets (Type C)
You can get the technical drawing of the product and the standard catalog dimensions from the table below. You can contact us for custom size production of products.
| MODEL (EN8CCY) |
Dimensions (mm) | Metric (M) |
Force (KG) |
||
|---|---|---|---|---|---|
| ØD | h | H | |||
| Ø10x5 | 10 | 5 | 10 | M3 | 3 Kg |
| Ø16x5 | 16 | 5 | 10 | M4 | 5,5 Kg |
| Ø20x7 | 20 | 7 | 10 | M4 | 9 Kg |
| Ø25x8 | 25 | 8 | 13 | M5 | 22 Kg |
| Ø32x8 | 32 | 8 | 14 | M6 | 34 Kg |
| Ø36x8 | 36 | 8 | 14 | M6 | 41 Kg |
| Ø42x9 | 42 | 9 | 17 | M8 | 68 Kg |
| Ø48x10 | 48 | 10 | 18 | M8 | 81 Kg |
| Ø60x15 | 60 | 15 | 23 | M8 | 113 Kg |
| Ø75x20 | 75 | 20 | 30 | M10 | 164 Kg |
