Ø63x14 mm Female Bolt-Connected Neodymium Pot Magnet
Ø63x14 mm Female Bolt-Connected Neodymium Pot Magnet
$0.00
With installments starting from $0.00!
| Stock | : | Sadece Teklif |
| Model | : | MGKP6314 |
| Category | : | Neodyum Pot Mıknatıslar |
| Quantity | Pack Price | Unit Price | |
|---|---|---|---|
Please contact us for larger quantities.
Neodymium Pot Magnet - Ø63x14 mm - Female Bolt Connection
Unlike other magnets, neodymium magnets have a very high attraction power and are therefore preferred by many companies. Pot magnet types can be coated with different materials depending on the area to be used, increasing their durability. On our site, you can find various types of neodymium magnets in cube, block, disk or cylindrical sizes. These different productions make the product suitable for the area where it will be used. Product coatings include:
- Copper
- Nickel
- Gold
- Zinc
- Tin
- Silver
Please contact us for the type you want.
The pot magnets we produce, the coating does not tarnish and can be used for a long time without throwing it away.
Catalog Dimensions of Pot Magnet with Female Bolt Connection We Produce
Please contact us for manufacturing in special sizes other than the dimensions given below. You can visit our website for other magnet types

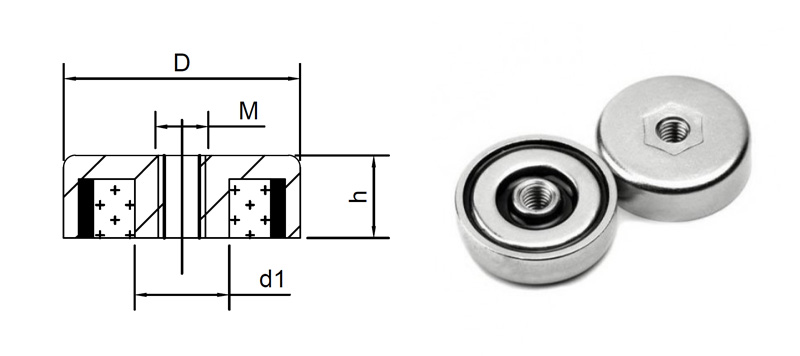

Female Thread Neodymium Pot Magnets (Type G)
You can find the technical drawing and standard catalog dimensions of the product in the table below. Please contact us for custom size production.
|
MODEL (GN8CCY) |
Dimensions (mm) |
Pull Force (kg) |
|||
|---|---|---|---|---|---|
| ØD | h | Ød1 | M | ||
| Ø16x5 | 16 | 5 | 7 | M4 | 5.5 kg |
| Ø20x7 | 20 | 7 | 8 | M4 | 9 kg |
| Ø25x8 | 25 | 8 | 10 | M5 | 22 kg |
| Ø32x8 | 32 | 8 | 10 | M6 | 34 kg |
| Ø36x8 | 36 | 8 | 11 | M6 | 41 kg |
| Ø42x9 | 42 | 9 | 11 | M6 | 68 kg |
| Ø48x10 | 48 | 10 | 15 | M8 | 81 kg |
| Ø60x15 | 60 | 15 | 15 | M8 | 113 kg |
| Ø75x20 | 75 | 20 | 18 | M10 | 164 kg |
