Ø70 mm Recessed Head Magnet - Neodymium - 50 kg Force
Ø70 mm Recessed Head Magnet - Neodymium - 50 kg Force
$0.00
With installments starting from $0.00!
| Stock | : | Sadece Teklif |
| Model | : | MGK-P-2 |
| Category | : | Neodyum Pot Mıknatıslar |
| Quantity | Pack Price | Unit Price | |
|---|---|---|---|
Please contact us for larger quantities.
Neodymium Pot Magnet with Countersunk Hole - 70 mm Diameter, 15 mm Thickness
You can contact us for your special size requests for this countersunk neodymium pot magnet produced in standard catalog sizes. We can meet all your wholesale magnet needs.
Powerful Neodymium Countersunk Pot Magnet Models
Our neodymium hollow pot magnet models have a very high attraction power unlike other magnets. Thanks to these features, they are preferred by many companies and firms. Depending on the area of use, these products can be coated with various materials, thus becoming more durable. On our website, you can find neodymium magnet types in cube, block, disk or cylindrical shapes. These different shapes make the product suitable for the area of use. Product coatings can be made of the following materials:
- Copper
- Nickel
- Gold
- Zinc
- Tin
- Silver
Please contact us for the type of coating suitable for your needs.
Coated Pot Magnets
The pot magnets we manufacture do not blacken and peel off the coating

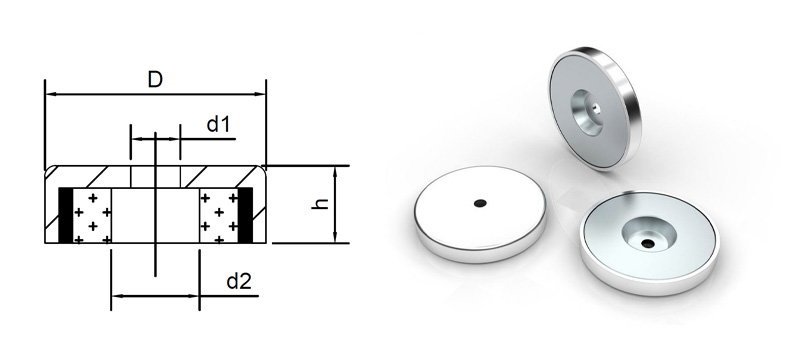

Female Thread Neodymium Pot Magnets (Type B)
You can find the technical drawing and standard catalog dimensions of the product in the table below. Please contact us for custom size production.
|
MODEL (DLN8CCY) |
Dimensions (mm) |
Pull Force (kg) |
|||
|---|---|---|---|---|---|
| ØD | h | Ød1 | Ød2 | ||
| Ø16x5 | 16 | 5 | 3.5 | 6.5 | 4 kg |
| Ø20x7 | 20 | 7 | 4.5 | 8 | 6 kg |
| Ø25x8 | 25 | 8 | 5.5 | 9 | 15 kg |
| Ø32x8 | 32 | 8 | 5.5 | 9 | 24 kg |
| Ø36x8 | 36 | 8 | 6.5 | 11 | 28 kg |
| Ø42x9 | 42 | 9 | 6.5 | 11 | 48 kg |
| Ø48x10 | 48 | 10 | 8.5 | 16 | 57 kg |
| Ø60x15 | 60 | 15 | 8.5 | 15 | 80 kg |
| Ø70x20 | 75 | 20 | 10.5 | 18 | 117 kg |
