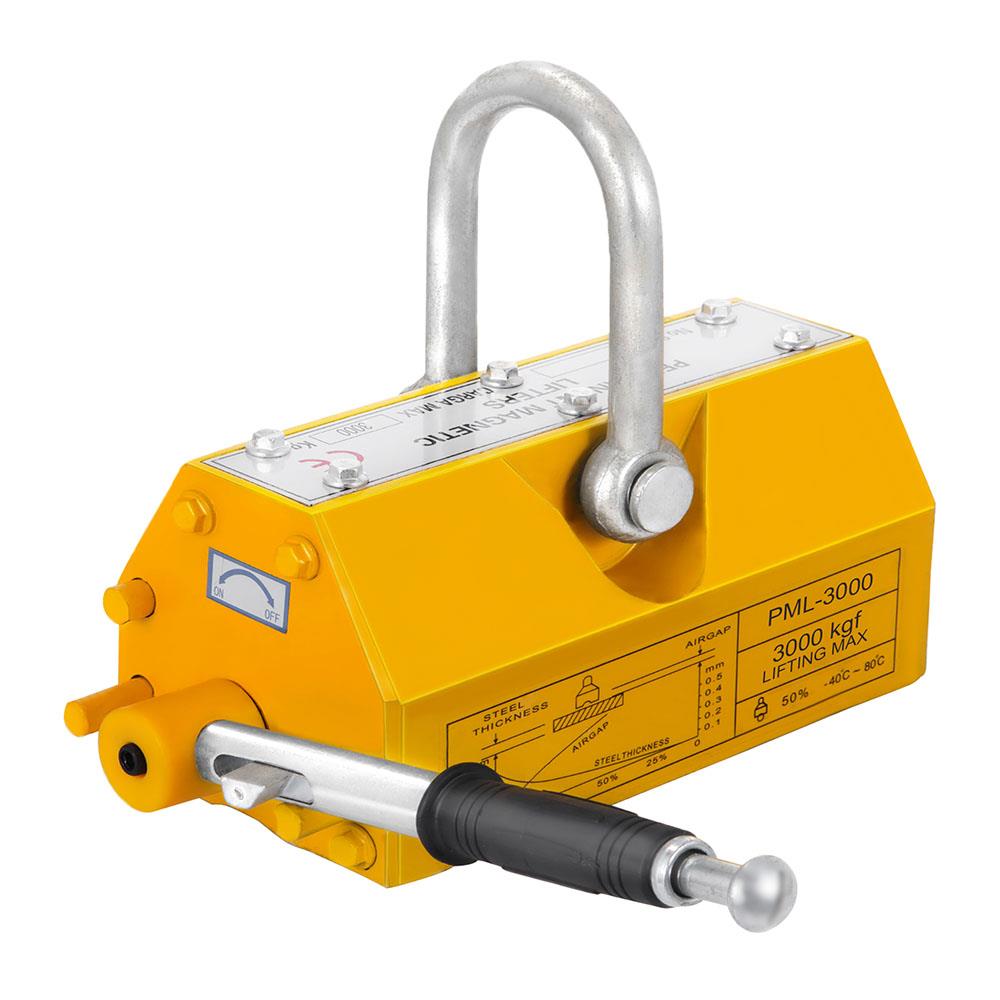

PML-3000 Magnetic Hoist - 3000 kg Power

PML-3000 Lever Lever Magnetic Hoist - 3 Tons Power (Max Breaking Force 10 Tons)

Due to its substantial weight, the manual magnetic lifter requires mounting on cranes or similar equipment. The lifted steel plates and heavy metals cannot be handled manually, necessitating crane assistance. The PML 3000 magnetic manual lifter, highly effective where human power is insufficient, offers a 3000 kg lifting capacity with a safety factor providing 10 tons of breaking force.

How to Use the Manual Magnetic Lifter?

The PML3000 magnetic lifter, offering 3000 kg continuous lifting capacity, requires no additional power source. This electricity-free manual lifting system provides constant force. The magnetic force is activated using the handle. When the handle is not engaged, the device remains inactive and in the closed position.

Operating Instructions

• Clean the surface of the piece to be lifted before use
• Position the magnetic lifter at the center of gravity of your piece
• Lower the magnetic lifter onto the piece to be lifted
• Pull the handle to activate the device
• Once the magnetic force secures the piece, lift and transport using crane assistance
• Return the handle to the closed position when the piece reaches the desired location

Technical Specifications

• Length: 458 mm
• Width: 286 mm
• Height: 261 mm
• Handle Length: 521 mm
• Magnet Type: Neodymium
• Lifting Capacity: 3000 kg
• Breaking Force: 10500 kg
• Product Weight: 100-150 kg
• Operating Temperature: Max. 80°C

p>

Materials	Productivity
Low carbon steel	100%
Medium carbon steel	90%
High carbon steel	80%
High alloy steel	70%
Cast iron	50%







Stok No	Power(Flat)	Power (Oval)	Max.Güç	W	L	H	I	°C
MGK-PML-100	100	50	350	62	92	67	126	<80
MGK-PML-300	300	150	1050	92	162	91	155	<80
MGK-PML-600	600	300	2100	122	232	117	196	<80
MGK-PML-1000	1000	500	3500	176	258	163	285	<80
MGK-PML-2000	2000	1000	7000	234	378	212	426	<80
MGK-PML-3000	3000	1500	10500	286	458	261	521	<80
MGK-PML-5000	5000	1800	18000	296	720	266	700	<80

• Boy: 458 mm
• En: 286 mm
• Yükseklik: 261 mm
• Kol uzunluğu: 521 mm
• Mıknatıs Türü: Neodyum
• Taşıma Gücü: 3000 kg
• Kopma gücü: 10500 kg
• Ürün ağırlığı: 100-150 kg
• Çalışma Sıcaklığı: Maks. 80°C
