30x20x4 MM Y35 GRADE FERRITE CERAMIC MAGNET – COST-EFFECTIVE AND DURABLE MAGNETIC SOLUTION

30x20x4 MM Y35 GRADE FERRITE CERAMIC MAGNET – COST-EFFECTIVE AND DURABLE MAGNETIC SOLUTION

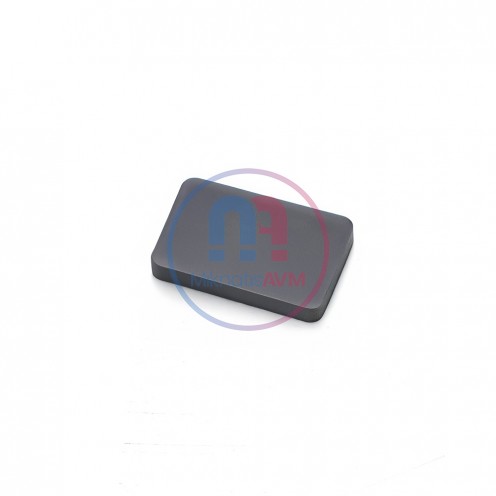

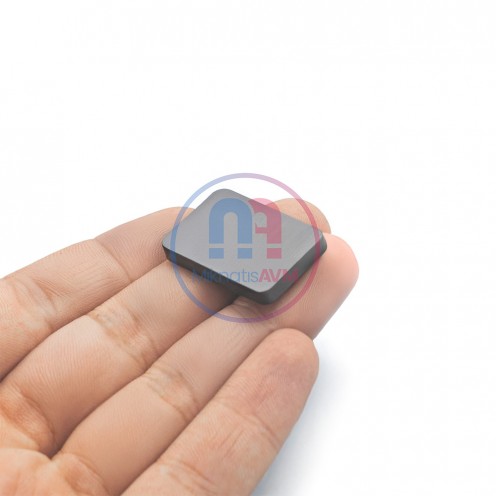

The 30x20x4 mm Y35 grade ferrite magnet is a ceramic oxide-based magnet model that offers economical and reliable magnetic solutions. This black rectangular magnet requires careful handling due to its brittle structure. Thanks to its hard ceramic composition, it is resistant to outdoor conditions and high temperatures, but it is vulnerable to impacts and should not be dropped or collided.

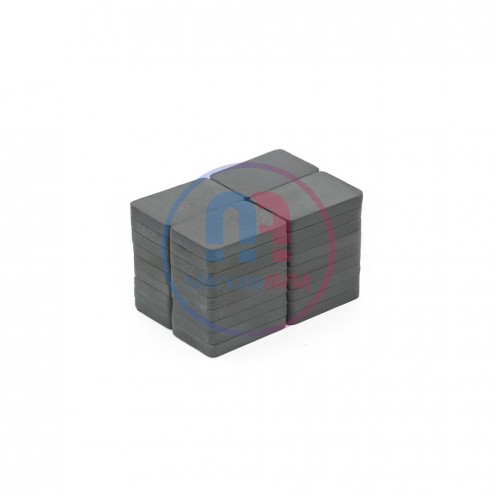

It is highly recommended not to let the magnets collide with each other during bulk handling. When separating them, slide carefully rather than pulling directly to avoid damage.

TECHNICAL SPECIFICATIONS

• Length: 30 mm

• Width: 20 mm

• Thickness: 4 mm

• Tolerance: ±0.2 mm

• Operating Temperature: Up to 220°C

• Pulling Force: ~1–2 kg

• Grade: Y35

• Material: Ceramic ferrite

• Coating: Standard oxide (black finish)

APPLICATION AREAS

• Magnetic insulation and holding in electronic circuits

• Magnetic sensing in sensor systems

• Bonding and fastening in hobby and educational projects

• Sorting and separation in recycling systems

• Electromechanical applications such as motors, speakers, and generators

QUALITY & CERTIFICATION

All of our ferrite magnets are certified with Gauss measurement. Upon request, an official Gauss report can be provided for an additional fee.
Magneteksan manufactures custom magnets and magnetic systems for a wide range of industries including defense, food processing, mining, automotive, recycling, and public institutions.
