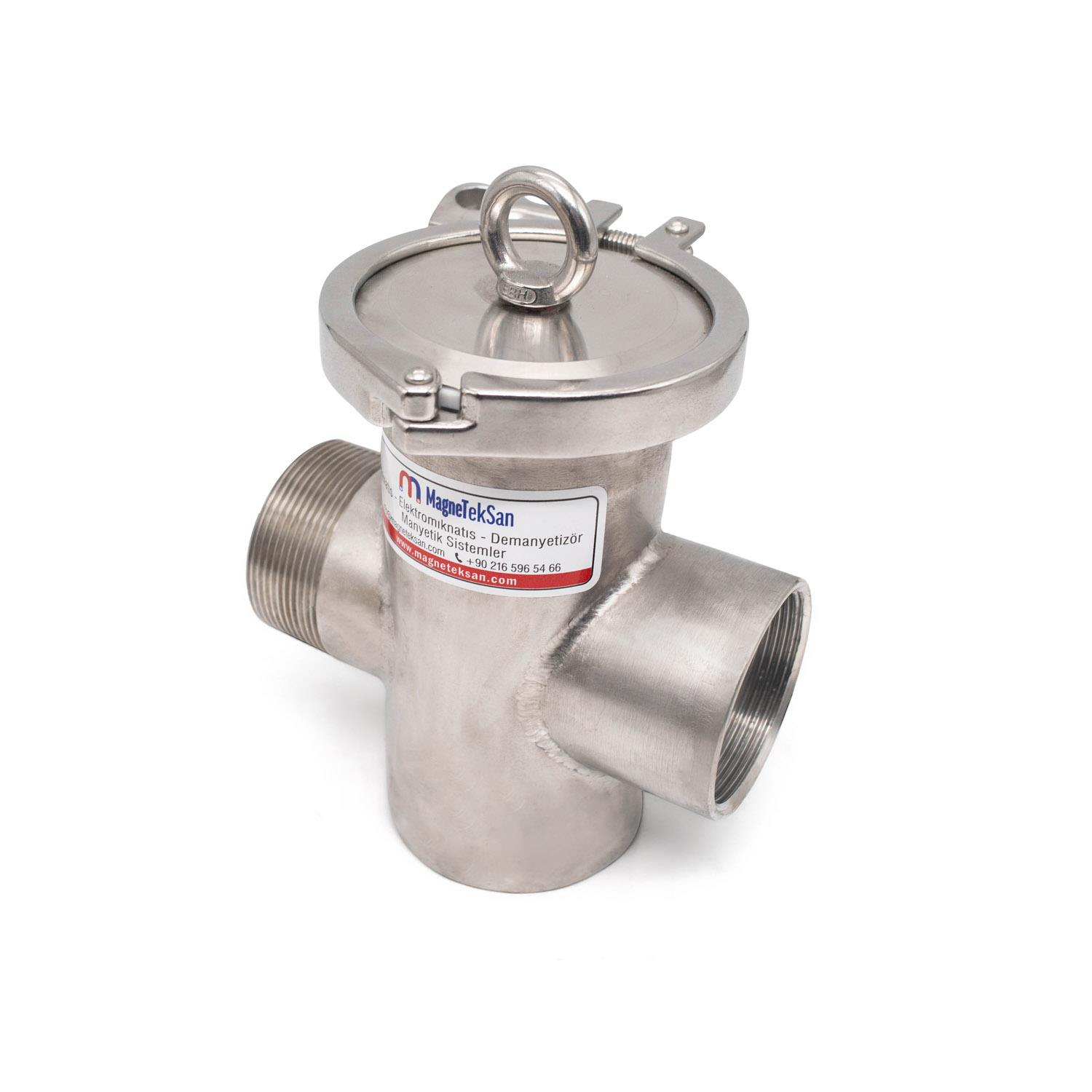

DN50 Inlet Outlet Magnetic Filter with Sleeve and Nipple Connection

DN50 Inlet Outlet Magnetic Filter with Sleeve and Nipple Connection
DN50 Inlet Outlet Magnetic Filter with Sleeve and Nipple Connection
DN50 Inlet Outlet Magnetic Filter with Sleeve and Nipple Connection
DN50 Inlet Outlet Magnetic Filter with Sleeve and Nipple Connection
DN50 Inlet Outlet Magnetic Filter with Sleeve and Nipple Connection
DN50 Inlet Outlet Magnetic Filter with Sleeve and Nipple Connection
Share:
DN50 Inlet Outlet Magnetic Filter with Sleeve and Nipple Connection
0.00 TL

With installments starting from 0.00 TL!

Stock : Sadece Teklif
Model : MGK-H-6
Category : Hygienic Magnetic Filters
Teklif İsteyin

Specifications

Dimensions
Connection
Magnet Properties
Material Specifications

DN50 - 2” Inlet Outlet Magnetic Filter with Nipple and Sleeve Features

Our magnetic filters are designed to remove metal particles and dust from your products. These filters ensure that your products are free from metal contamination and protect the health of your machines. Our products, which are easy to install, leak-proof and stainless design, can be used in all food companies. It is made of materials suitable for food standards.

The magnet measurement values of our hygienic magnetic filters comply with BRC and HACCP standards. When you purchase our magnetic filters certified by TUBITAK, we deliver this certificate with the product. Made of neodymium magnets with high attraction power, our filters easily attract very small metal powders and parts. Our neodymium magnetic filters offer five times more gauss attraction power than ferrite-ceramic magnets. Our products are built to be corrosion resistant.

The production of these neodymium magnet filters belongs entirely to us and is domestic production. We have the capacity to produce magnetic filters in the sizes and gauss power you want according to your needs. They can be easily used in environments in contact with liquid. Please inform us the temperature of the environment where this magnet will be used.

Hygienic Neodymium Magnetic Filter Catalog Dimensions

You can see the sizes of hygienic filters we produce from the list below. Apart from these types, please contact us for the production of hygienic magnetic filters in special sizes.

Hygienic Magnetic Filter Sizes


Product Code

ENTRANCE SIZE (B1-B2)

BODY DIAMETER (A)

HEIGHT (C)

MGK-H-1

1/2″

DN15

21,3 mm

Ø51 mm

15 cm

MGK-H-2

3/4″

DN20

26,9 mm

Ø51 mm

15 cm

MGK-H-3

1″

DN25

33,7 mm

Ø51 mm

15 cm

MGK-H-4

1 1/4″

DN32

42,4 mm

Ø63,5 mm

15 cm

MGK-H-5

1/2″

DN40

48,3 mm

Ø76,1 mm

15 cm

MGK-H-6

2″

DN50

60,3 mm

Ø101 mm

20 cm

MGK-H-7

1/2″

DN65

73.0 mm

Ø101 mm

20 cm

MGK-H-8

3"

DN80

88,9 mm

Ø101 mm

25 cm


Technical Specifications

  • Magnetic filter diameter: 10.1 cm
  • Height 20 cm
  • Magnetic Flux 12,000 Gauss (±5%)
  • Operating Ambient Temperature: Ideally up to 60°C, maximum 80°C
  • Material: AISI304 / AISI3016 / AISI316L
  • Coating Stainless
  • Type: Sealed
