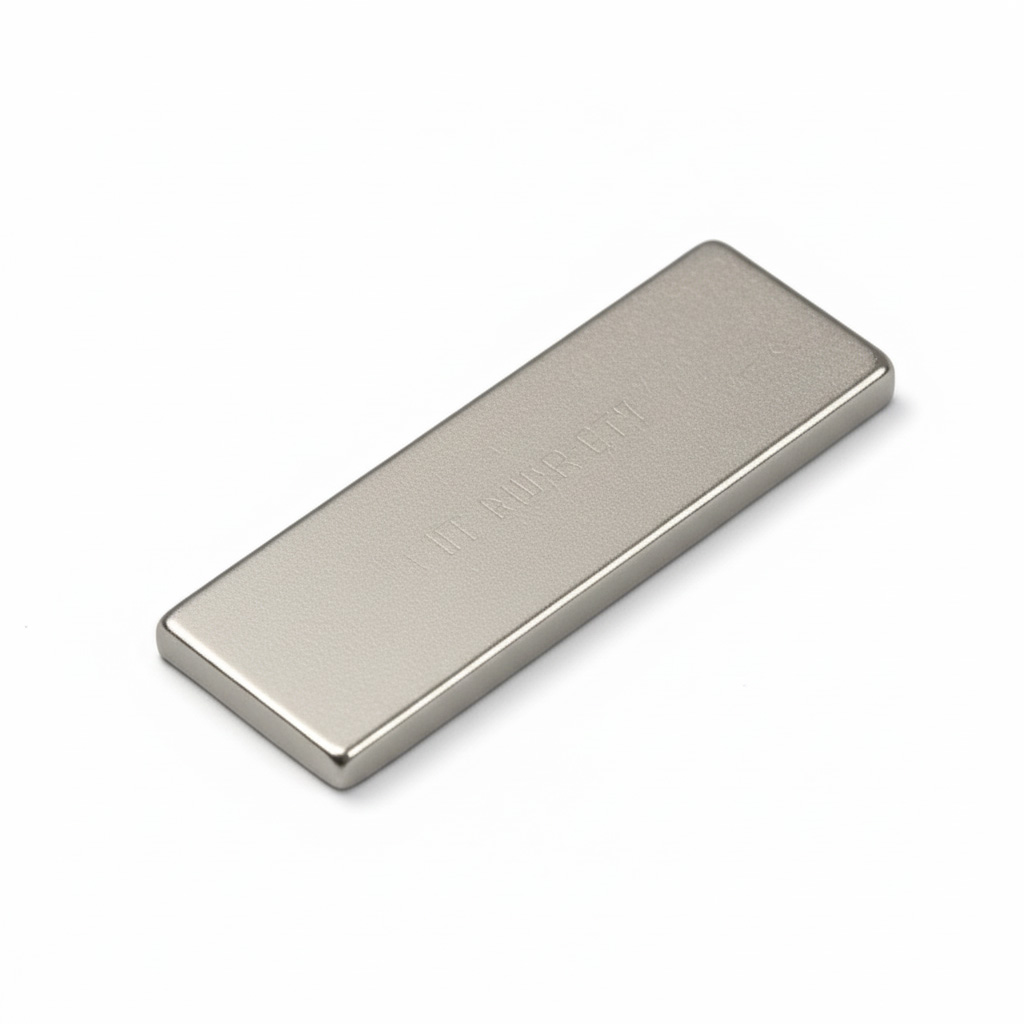

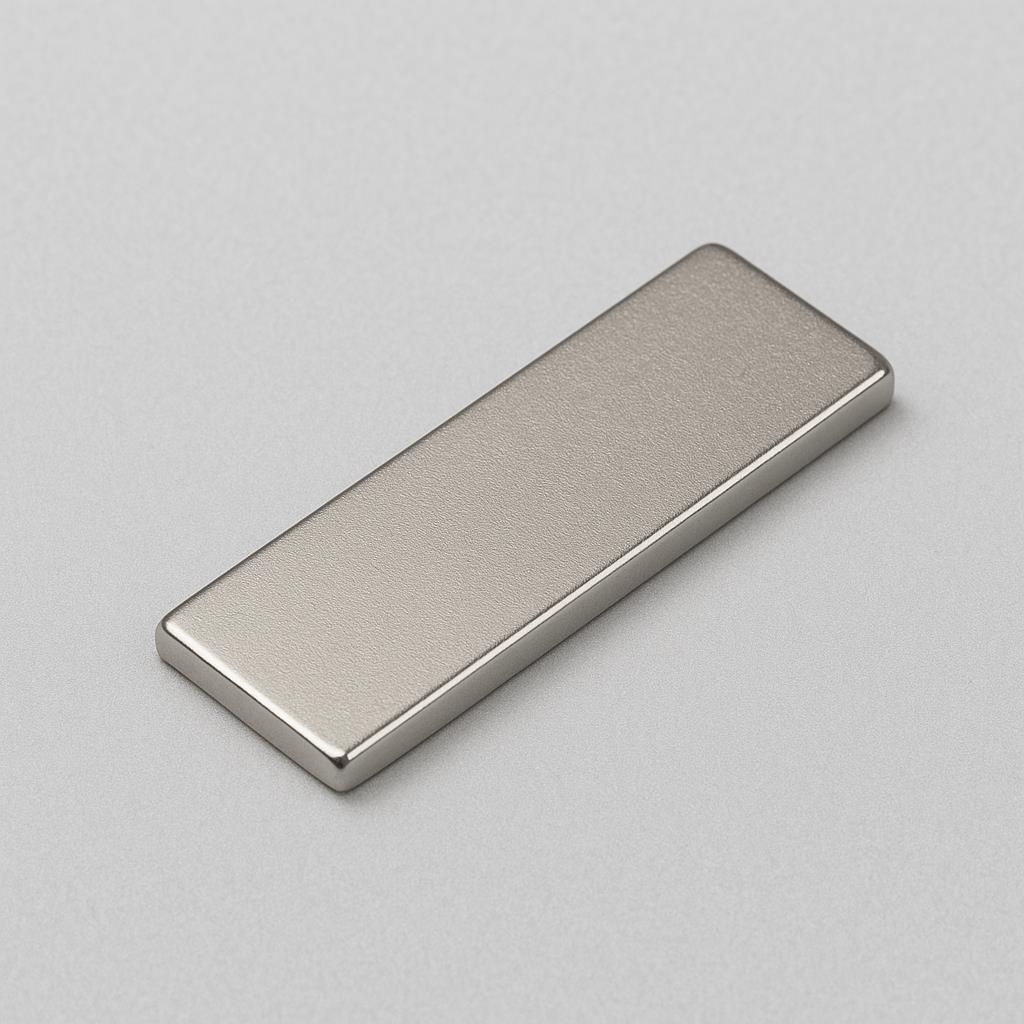

40x13x2 mm N35 Neodymium Magnet (Width 40 mm × Length 13 mm × Thickness 2 mm)

40x13x2 mm N35 Neodymium Magnet (Width 40 mm × Length 13 mm × Thickness 2 mm)

⚙️ Technical Product Information

✅ Product Name: N35 Neodymium Magnet – Rectangular Type
✅ Dimensions: 40 mm (Width) × 13 mm (Length) × 2 mm (Thickness)
✅ Shape: Rectangular
✅ Material: NdFeB (Neodymium – Iron – Boron)
✅ Grade: N35
✅ Coating: Nickel (Ni–Cu–Ni) Triple Layer Protection
✅ Magnetic Pole Configuration: Face to Face
✅ Magnetic Flux Density (Br): 4,000 – 5,000 Gauss (4 – 5 kGs)
✅ Coercive Force (HcB): ≥ 10.8 kOe
✅ Maximum Energy Product (BHmax): 35 MGOe
✅ Density: 7.5 g/cm³
✅ Maximum Operating Temperature: 80 °C
✅ Corrosion Resistance: Medium (Nickel-coated protection)

???? Mechanical Properties

Magnetic Properties

• Magnetization Direction: Magnetized through the thickness (2 mm).

• Poles: Located on the front and back rectangular faces.

• Magnetic Field Lines: Concentrated at the center and focused near the edges.

• 40 × 13 mm surface area provides a high precision advantage and alignment accuracy in narrow space applications due to its thin form factor.

• Approximate Pull Force: 2.5 – 3 kgf (tested on a steel surface).

⚙️ Applications

• Magnetic holding and fastening systems

• Industrial sensor and motor applications

• Mechanical prototyping and engineering projects

• Model making, CNC, and R&D projects

• Strong magnetic coupling or alignment systems

⚠️ Warnings and Usage Notes

⚠️ Neodymium magnets are very strong and brittle; they may crack under impact, shock, or compression.
⚠️ At temperatures above 80 °C, magnetic performance may decrease.
⚠️ Magnets can collide rapidly with each other or metal surfaces — protective gloves are recommended.
⚠️ Keep out of reach of children.
