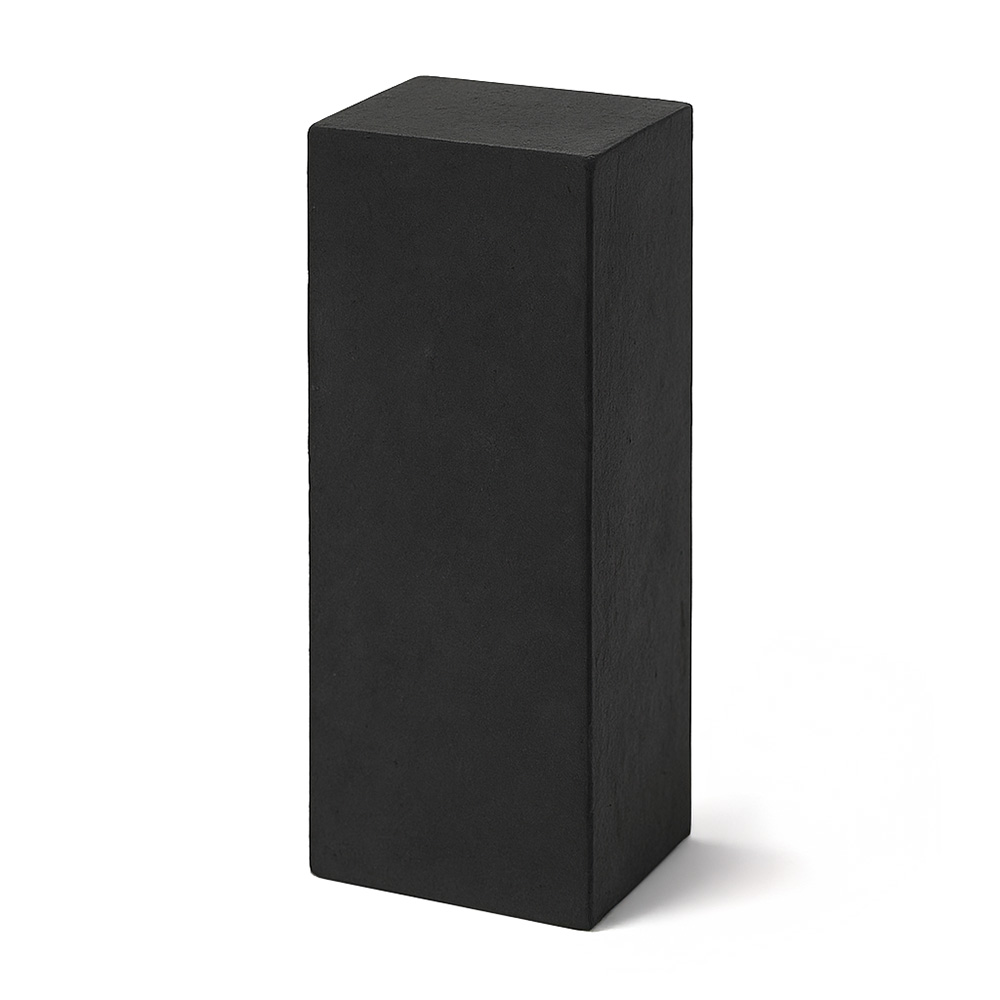

Industrial Soft Ferrite Core Blocks – Low-Loss Mn-Zn Ferrite

Industrial Soft Ferrite Core Blocks – Low-Loss Mn-Zn Ferrite
Industrial Soft Ferrite Core Blocks – Low-Loss Mn-Zn Ferrite
Based on 0 reviews. Write a review
$0.00

With installments starting from $0.00!

Stock : Sadece Teklif
Model : MGK-FC-101
Category : Ferrit Çekirdekler
Quantity Pack Price Unit Price

Please contact us for larger quantities.

Teklif İsteyin
Buy Now Extra Button
Add to Wish List

Dimensions and Weight Table (Tolerance: ±0.3 mm)

Height(mm)±0.3 Width(mm)±0.3 Height(mm)±0.3 Weight (g)
50 40 20 192
51.7 51.7 20 257
90 40 10 173
100 100 40 1920
100 50 40 960
120 40 30 691
120 40 6 138
130 40 20 499
200 100 40 3480


This product is a large size ferrite core solution with a soft Mn-Zn ferrite core block structure, developed for high-power and low-loss industrial magnetic applications.

Soft Mn-Zn ferrite core blocks play a critical role in power electronics applications with high magnetic permeability, low hysteresis loss and stable operation at high frequencies. This product line is specifically designed for high-power transformers, inductors, and EMI suppression systems.

Thanks to the soft ferrite structure, the magnetic field can be directed and reversed quickly. This ensures high efficiency, especially in switched power supplies, high-frequency energy transmission and industrial electromagnetic control systems. The large block form is suitable for harsh operating conditions with its high current carrying capacity and low temperature rise.



Technical Specifications

  • Ferrite type: Soft Mn-Zn ferrite
  • Material grades: H40, H95
  • Core type: I-type ferrite core (block form)
  • Magnetic loss: Low loss (Low loss)
  • Power level: Suitable for high power applications
  • Size range: 40 mm – 100 mm and above
  • Size tolerance: ±3% / ±0.5 mm
  • Processing: Cutting (Cutting)
  • Application type: Industrial magnet/magnetic component
  • Purpose of operation: Transformer and inductor core
  • Sample dimensions (A x B x C mm): 50 × 40 × 20 / 100 × 100 × 40 / 120 × 80 × 40 / 200 × 100 × 40
  • Weight range: Approximately 173 g – 3480 g (depending on measurement)

Product Advantages

  • High magnetic permeability
  • Low energy and core loss
  • Stable performance at high frequencies
  • Suitability for large-scale and high-power systems
  • EMI and electromagnetic noise reduction effect
  • Mechanical strength for industrial use

Areas of Use

  • High-power industrial transformers
  • Switched-mode power supplies (SMPS)
  • Inductor and coil systems
  • EMI/EMC filtering applications
  • Power electronics and energy conversion systems
  • Industrial magnetic control solutions
